Mastering Storage in Windows Server: Disks, Volumes, and RAID Explained

“Storage management is a cornerstone of any Windows Server environment. Whether you’re dealing with a small business server or a large enterprise setup, understanding how to manage disks, volumes, and RAID is crucial for performance, reliability, and data protection. This guide will walk you through the essentials.”

1. Disk Management:

“Before creating volumes or configuring RAID, you need to manage your physical disks. Disk Management, accessible through diskmgmt.msc, is your primary tool. Here’s what you can do:”

• Initialize Disks: “When you add a new disk, you’ll need to initialize it. Choose between MBR and GPT partitioning schemes. GPT is recommended for modern servers due to its support for larger disks and improved reliability.”
• Create Simple Volumes: “Create partitions, allocate drive letters, and format disks with file systems like NTFS or ReFS.”
• Convert Basic to Dynamic Disks: “Dynamic disks offer advanced features like spanned and striped volumes, but they’re less portable. Use with caution.”

2. Volume Creation:

“Volumes are the logical storage units that store your data. Windows Server offers various volume types:”

• Simple Volumes: “A single partition on a single disk.”
• Spanned Volumes: “Combines space from multiple disks into a single volume. Useful for expanding storage, but no redundancy.”
• Striped Volumes (RAID 0): “Distributes data across multiple disks for increased performance. Data loss occurs if one disk fails.”
• Mirrored Volumes (RAID 1): “Duplicates data across two disks for redundancy. If one disk fails, the other continues to function.”
• RAID 5 Volumes: “Combines striping with parity for redundancy and performance. Requires at least three disks. One disk can fail without data loss.”
• Storage Spaces: “A more modern approach that pools physical disks and creates virtual disks with various resilience options (similar to RAID).”

3. RAID Configurations:

“RAID (Redundant Array of Independent Disks) is essential for data protection and performance. Here’s a quick overview:”

• Software RAID: “Configured through Windows Server’s Disk Management. Less expensive but can impact performance.”
• Hardware RAID: “Uses a dedicated RAID controller for better performance and reliability. Recommended for critical servers.”
• Choosing the Right RAID Level: “Consider your performance and redundancy needs. RAID 1 or 5 is common for servers. RAID 10 (a combination of mirroring and striping) offers excellent performance and redundancy.”

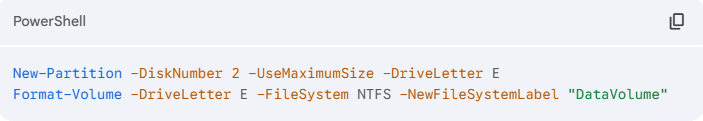

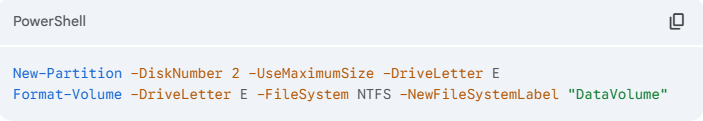

PowerShell Example (Creating a Simple Volume):

New-Partition -DiskNumber 2 -UseMaximumSize -DriveLetter E
Format-Volume -DriveLetter E -FileSystem NTFS -NewFileSystemLabel "DataVolume"

Best Practices:

• Regularly monitor disk health and performance.
• Implement a robust backup strategy.
• Use hardware RAID for critical servers.
• Document your storage configurations.
